7.2G VRX BOX FPV Video Receiver 6.1-7.2GHz Frequency Band with 64 CH for Stable Long-range Drone Transmission

$83.00
  • Wide 6.1–7.2GHz Frequency Coverage: Supports an extended frequency range from 6100MHz to 7200MHz, providing greater flexibility when operating in environments where conventional FPV frequencies are congested.
  • Stable Analog Video Reception: The wide 6.1–7.2GHz frequency band and 64 selectable channels help maintain consistent video reception quality, supporting smoother FPV viewing and more reliable mission performance.
  • 64 Selectable Channels: Offers 64 channels for precise frequency selection, allowing users to quickly identify cleaner channels and improve reception stability.
  • Dual-Antenna Diversity Reception: Equipped with dual antenna ports to enhance signal reception performance and improve reliability during long-range operations.
  • Real-Time Display Interface: Integrated display screen provides convenient access to channel and frequency information, enabling fast configuration and monitoring.
  • Compact & Portable Design: The lightweight aluminum housing enables easy integration into portable ground stations, mobile receiving systems, and field-deployed UAV operations.
Send Inquiry Now>
Overview

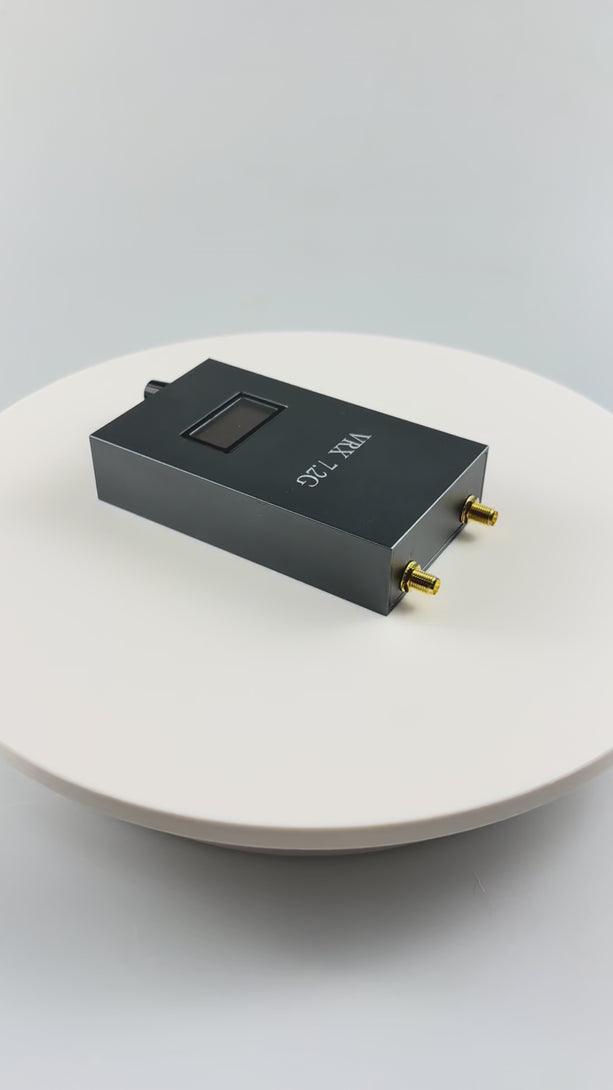

7.2G VRX BOX FPV Video Receiver

The 7.2G VRX BOX FPV Video Receiver is designed for reliable long-range analog video reception in FPV and UAV applications. Supporting a wide 6.1–7.2GHz frequency range and 64 selectable channels, it provides flexible frequency management and stable signal reception in complex wireless environments.

Built for FPV pilots, aerial imaging teams, and industrial UAV operators, the VRX BOX helps maintain clear video transmission while reducing interference from crowded frequency bands. Its compact design, dual-antenna configuration, and intuitive interface make it suitable for both portable and fixed receiving systems.

Why Choose Our 7.2G VRX?

Improved Signal Reliability

The wide frequency coverage and dual-antenna design help maintain stable video reception, reducing the risk of signal interruption during operation.

Greater Frequency Flexibility

With 64 available channels, users can easily avoid crowded frequencies and adapt to different operating environments.

Easier System Integration

The compact structure and standard interfaces simplify integration into existing FPV ground stations and custom receiving platforms.

Enhanced Operational Efficiency

Quick channel selection, clear status display, and user-friendly controls help streamline setup and reduce adjustment time in the field.

Select Encoder Operation Method

The rotary encoder has two control modes: rotation and press.
1. Revolve
Clockwise rotation will increase the channel; Counterclockwise rotation reduces the channel size. (The channel has only 8 options. Rotate clockwise to cycle through channels 1 to 8.)
2. Press Down
Pressing the rotary encoder increases the frequency band. (Only 8 frequency
bands are available; pressing the selection encoder on the 8th band returns to the first band.)

FPV Flying

Provides reliable analog video reception for recreational and professional FPV operations.

Long-Range UAV Missions

Supports stable video monitoring for extended-distance flight applications.

Aerial Photography & Filming

Enables real-time video viewing during aerial imaging and content production.

Industrial UAV Operations

Suitable for inspection, surveying, security monitoring, and other professional UAV applications requiring dependable video reception.

Training & Testing

Ideal for UAV training programs, system verification, and FPV equipment testing environments.

Specification

Frequency

Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 6110 6130 6150 6170 6190 6210 6230 6250
Band B 6270 6290 6310 6330 6350 6370 6390 6410
Band C 6430 6450 6470 6490 6510 6530 6550 6570
Band D 6590 6610 6630 6650 6670 6690 6710 6730
Band E 6750 6770 6790 6810 6830 6850 6870 6890
Band F 6910 6930 6950 6970 6990 7010 7030 7050
Band G 7070 7090 7110 7130 7150 7170 7190 7210
Band H 6115 6265 6425 6585 6745 6905 7065 7185

Parameters

Working Voltage DC 7–32V
Operating Ambient Temperature -10–65°C
Weight 166g excluding antenna
Outline Dimension 110mm × 65mm × 25mm
Number of Channels 64CH
Frequency Range 6100–7200MHz
Antenna Interface SMA external thread internal hole
