100W Digital 700W Anti Drone Module Signal Jamming Blocker Device For Drone Counter
key...
key Features:
* Flexible Frequency Support: Covers key drone control and video bands, including 433MHz,400M, 600M, 700M, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, and 5.8GHz,6.2GHz, allowing for tailored interference strategies across different drone models.

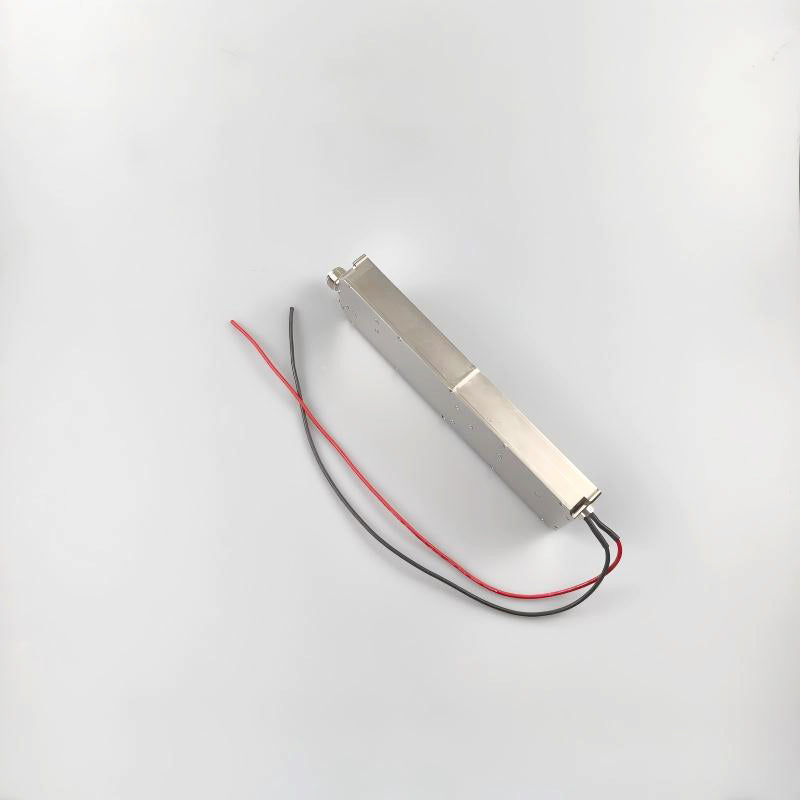

* Compact & Integration-Ready: With a small shape of 202×57×18.5MM and a lightweight design (400g), the module is ideal for embedded integration into handheld, backpack, or fixed jamming systems.
* Designed for Harsh Environments: Operates reliably in extreme conditions from -20℃ to 80℃, ensuring consistent performance in the field.
* Reliable Connectivity: Built with SMA connectors for stable, high-quality RF signal transmission.
This 100W anti-drone module is engineered for industrial-grade applications, delivering high-power jamming in a compact and integration-ready form. Built to meet the demands of modular systems, rapid deployment kits, and mobile counter-UAV platforms, it ensures robust performance, long-term reliability, and seamless compatibility in mission-critical environments.
Interface Definition
DC-24V: DC voltage 24-28V input terminal
RF OUT: (SMA head) Power amplifier module signal output terminal.
CTRL: Signal output control terminal (TTL level)
When "1" is set, the signal is on and the module has an output.
When it is set to "0", the signal is turned off and the module has no output.
Detection: Output power detection terminal (TTL level output)
When it is "1", the amplifier has output.
When it is "0", the amplifier has no output.
| Item | Specification |
|---|---|

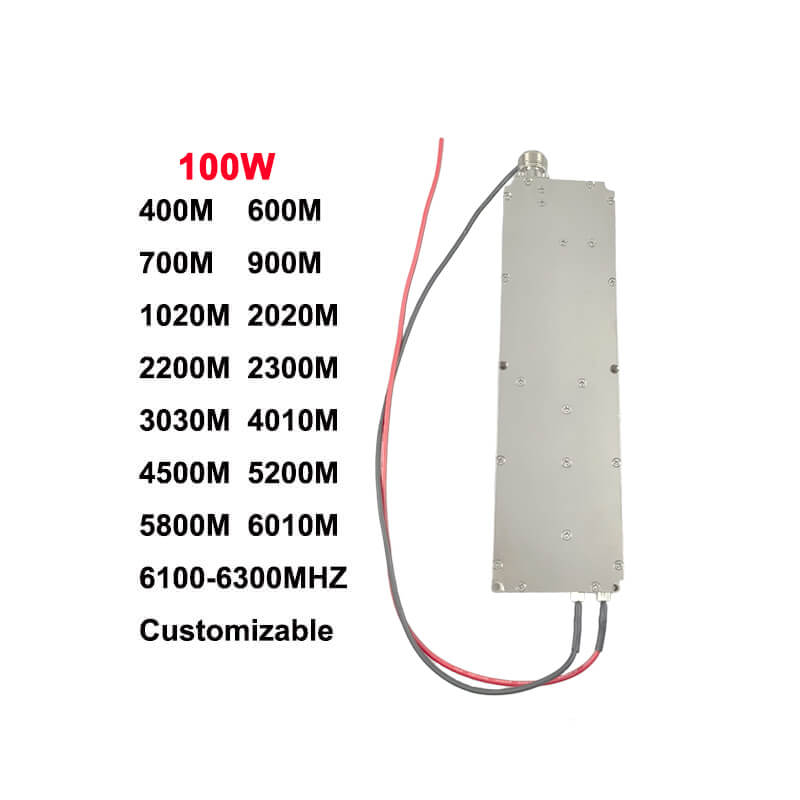

| Frequency range (unit, MHz) | 400M: 400–550 MHz 600M: 550–650 MHz 700M: 650–750 MHz 900M: 750–900 MHz 1020M: 900–1120 MHz 2020M: 2000–2100 MHz 2200M: 2100–2200 MHz 2300M: 2200–2300 MHz 3030M: 3000–3200 MHz 4010M: 4000–4200 MHz 4500M: 4400–4600 MHz 5200M: 5150–5350 MHz 5800M: 5725–5850 MHz 6010M: 5900–6100 MHz 6200M: 6100–6300 MHz |
| Impedance | 50Ω |
| Stray and harmonic | No obvious stray or 2nd/3rd harmonic signal outside the working frequency band |
| Output power stability | ≤1.5 dB |
| Signal system | LORA + VCO + GaN + Circulator |
| Flatness of sweep frequency | ≤1.5 dB |
| RX power | ≥100W (47 dBm) |
| Gain | ≥50 dB |
| Power supply voltage | DC 248 |
| Output interface | OUT-SMA |
| Working current (at 100W) | 7A-10A |
| Static current | ≤1.5A |
| Interfaces | Power supply interface, CTRL transmission control interface, power detection interface |
| Power detection output voltage | 5 ± 0.5V |
| Scanning frequency | ≥300K |
| Weight | 400g |
| Module size | 202 × 57 × 18.5 MM (excluding protruding connector parts) |
