120W Full-band K-16 Omnidirectional 5G Mobile Phone Detector for Schools

$480.00

Enhanced Mobile Detection Solution for Educational Environments

For special requirements, please contact us for details.
Click to WhatsApp: +86 15813705916

  • Full-Band Monitoring: Precisely monitors 2G/3G/4G/5G, Wi-Fi, Bluetooth, and GPS signals, ensuring complete wireless observation across classrooms and academic facilities.
  • Omnidirectional Coverag: Provides 360° signal detection to guarantee no blind zones and full area awareness.
  • Flexible Installation & Range: Wall-mounted, desktop, or floor placement with 10–50m adjustable detection range to suit any educational or institutional space.
  • 24/7 Reliable Continuous Operation: Advanced aluminum radiators and silent fans ensure stable, uninterrupted monitoring around the clock.
  • Flexible Upgrades: Supports optional network integration module for IP-based monitoring and future enhancements.
  • Customizable Frequency Bands: Expandable detection bands to accommodate diverse educational and institutional requirements.
  • Factory-Direct Reliability: 21 years of R&D experience, certified quality, and global technical support for B2B partners.
Send Inquiry Now>

80W Full-band K-14 Omnidirectional Cell Phone Blocker for Wall-mounted＆Desktop - DescBoost80W Full-band K-14 Omnidirectional Cell Phone Blocker for Wall-mounted＆Desktop - DescBoost
Customizable Meeting Rooms 80W Full-band K-14 Omnidirectional Cell Phone Bluetooth Blocker

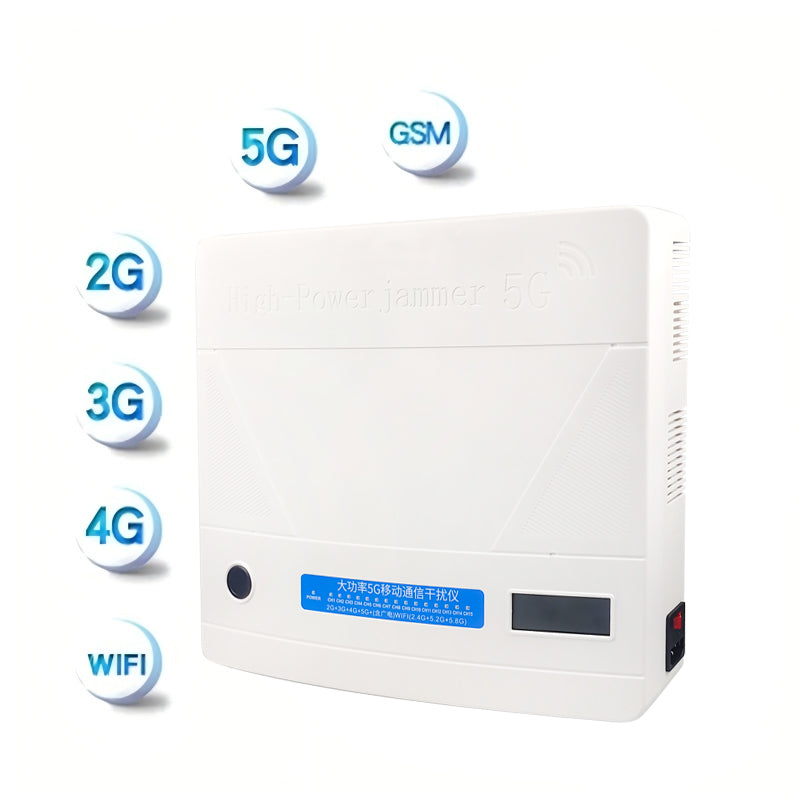

A white classroom cell phone jammer with symbols indicating 5G, GSM, 2G, 3G, 4G, and WiFi frequencies. show the detailed image of phone jammer
Customizable Meeting Room 120W Full-band K-16 Omnidirectional Cell Phone Blocker
cellphone blocker with multiple frequency on a white backgroundA portable signal blocker device with multiple fans inside a metal case, with visual indicators for 5G, 2G, 3G, 4G, and WiFi frequencies.
Customizable Prison 120W 2/3/4/5G/WIFI Bluetooth Blocker Adjustable N-14 Directional Cell Phone Signal Blocker
A black portable cell phone jammer device with indicators for 5G, GSM, 2G, 3G, 4G, and WIFI.Black portable phone jammer with handle and fans on a white background
100W E-12 Directional Full-band Cell Phone Jammer 5G GSM WIFI Bluetooth Signal Jammer
Overview

5G Mobile Phone Detector Overview

The 5G/4G Mobile Detection System is a high-performance communication monitoring tool for environments where wireless activity needs structured observation. Equipped with omnidirectional high-gain antennas and multi-channel segmented detection modules, it provides stable, long-range observation of mobile networks, Wi-Fi, Bluetooth, GSM, and GPS signals.

Advanced Technology

Built with high-performance radio modules, the Mobile Detection System delivers accurate, stable, and full-band signal observation suitable for modern security and institutional monitoring.

Next-Gen UHF Detection Technology

Monitors 2G–5G mobile bands, Wi-Fi, Bluetooth, and optional VHF/UHF channels with high precision.

Omnidirectional High-Gain Antenna Array

Provides extended observation range with 360° coverage and no blind zones.

Dual Status Display

Real-time voltage and operational-status indicators allow for easier monitoring and maintenance.

Industrial Cooling System

Six silent fans with aluminum alloy heat sinks ensure continuous, reliable 24/7 operation.

Features & Benefits

  • Full-Band Detection: Monitors 2G–5G, Wi‑Fi, Bluetooth, GPS, and optional walkie‑talkie signals in secure areas.

  • High-Power Observation: Ensures reliable detection even in areas with strong external mobile signals.

  • Omnidirectional Antenna: Delivers uniform, seamless monitoring without blind spots.

  • Soft-Start Circuit Design: Protects internal components and extends device lifespan.

  • Flexible Deployment: Can be wall-mounted or placed on a desktop for rapid setup.

FAQs

Q: Can the mobile detector monitor areas near high-signal locations like mobile towers?
A: Yes. Even in high-signal environments, the device provides consistent monitoring and structured observation due to high-gain antennas and high-power modules.

Q: Will it affect other classroom equipment like projectors or microphones?
A: No. The system only observes wireless signals (mobile, Wi-Fi, Bluetooth, GPS) and does not affect wired devices or classroom equipment.

Q: Can the detection range be adjusted?
A: Yes. The range can be tuned from 1m to 30m to suit various room sizes and facility layouts.

Q: Do multiple detectors interfere with each other?
A: No. Properly placed units work seamlessly without overlap or monitoring gaps.

Q: Is outdoor equipment needed near strong mobile signals?
A: Optional. For high-signal areas, an outdoor unit can strengthen monitoring coverage.

Q: Does installation require modifying the room structure?
A: No. Devices are flexible: wall-mounted, ceiling-mounted, or placed on flat surfaces.

Q: Can the system operate continuously without overheating?
A: Yes. Built-in cooling and soft-start circuits ensure stable 24/7 operation.

Q: Are customization services available for institutions?
A: Yes. OEM/ODM options allow adjustments of frequency bands, power levels, and device housing to meet specific institutional monitoring requirements.

Specification

Parameters Performance and Metrics

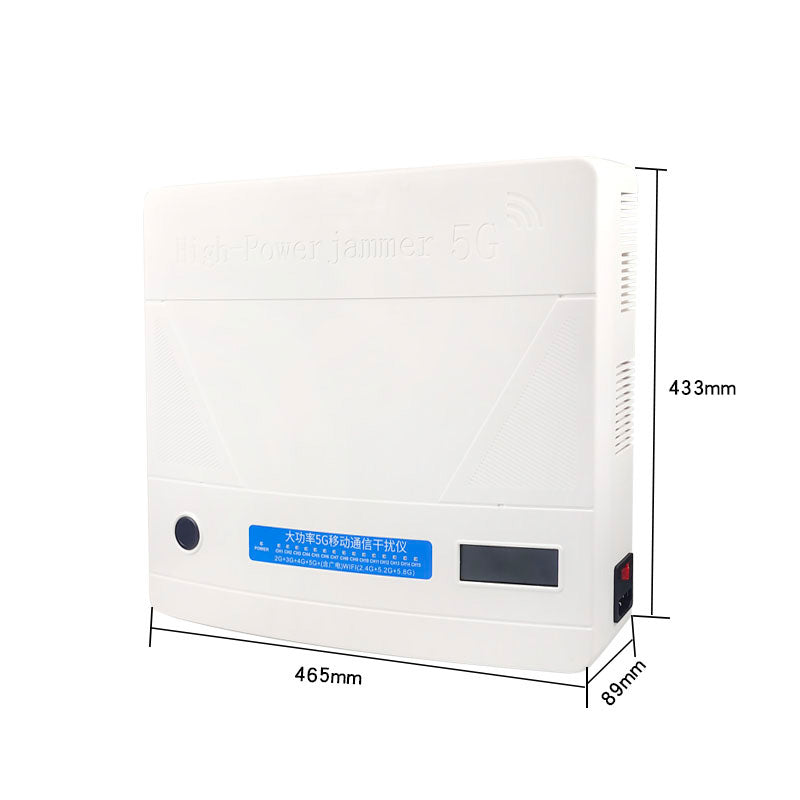

Size 465 × 433 × 89 mm (Length × Width × Height)
Weight 4.5 kg
Range 10–50 meters (depending on the strength of the base station signal)
Power Supply & Consumption AC 110–220V / DC 24V / 25A, Power Consumption: 500W
Operating Temperature -10℃ to +55℃
Storage Temperature -20℃ to +60℃

Electrical Parameters

Output Terminal Operating Frequency Frequency Range Output Power Channel Output Power
5G 758–803 MHz 40 dBm (10W) 5 dBm / 30 kHz (min)
CDMA 870–880 MHz 40 dBm (10W) 5 dBm / 30 kHz (min)
GSM 930–960 MHz 40 dBm (10W) 5 dBm / 30 kHz (min)
DCS 1805–1880 MHz 39.5 dBm (9W) 2 dBm / 30 kHz (min)
PHS 1880–1990 MHz 39.5 dBm (9W) 2 dBm / 30 kHz (min)
3G 2010–2145 MHz 39 dBm (8W) 2 dBm / 30 kHz (min)
3G1 2110–2170 MHz 39 dBm (8W) 2 dBm / 30 kHz (min)
4G1 2300–2390 MHz 39 dBm (8W) 2 dBm / 30 kHz (min)
4G2 2500–2600 MHz 39 dBm (8W) 2 dBm / 30 kHz (min)
5G 2600–2690 MHz 39 dBm (8W) 2 dBm / 30 kHz (min)
WiFi 2.4G 2400–2500 MHz 37 dBm (5W) 2 dBm / 30 kHz (min)
WiFi 5.2G 5150–5300 MHz 37 dBm (5W) 2 dBm / 30 kHz (min)
WiFi 5.8G 5725–5850 MHz 37 dBm (5W) 2 dBm / 30 kHz (min)
5G1 3300–3500 MHz 38.5 dBm (7W) 2 dBm / 30 kHz (min)
5G2 3500–3800 MHz 38.5 dBm (7W) 2 dBm / 30 kHz (min)
5G3 4800–4960 MHz 37 dBm (5W) 2 dBm / 30 kHz (min)
VHF (optional) 136–174 MHz 37 dBm (5W) 2 dBm / 30 kHz (min)
UHF (optional) 400–470 MHz 37 dBm (5W) 2 dBm / 30 kHz (min)
